ARF-UPe-HA2-NV - ARF TEST

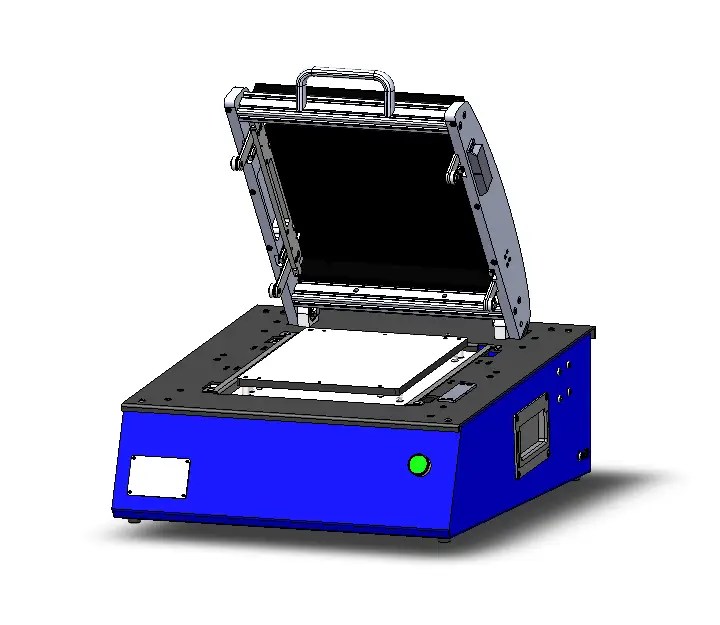

Front view new standard version semi automatic test fixture for electronic test

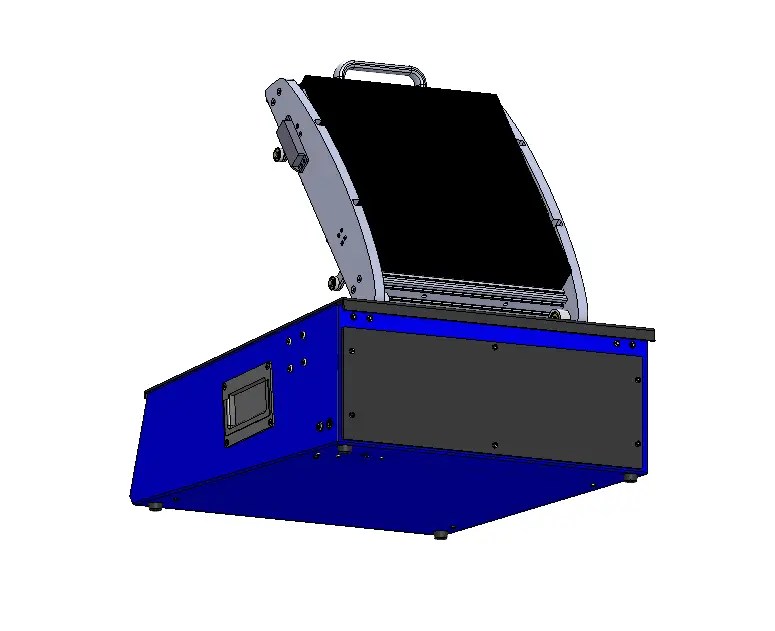

Rear view new standard version semi automatic test fixture for electronic test

Electronic Test, Semi-Automatic Test Fixture, Test Fixture

ARF-UPe-HA2-NV

General Data

Standard version:

Useable area:

Antistatic-compliant:

ESD-compliant:

Max. contact force:

Bottom contacting:

Top contacting:

Radio frequency version:

Weight:

Outer dimensions open (WxDxH):

Outer dimensions closed (WxDxH):

Yes

240 x 280 mm

Yes

Yes, option on demand

450 N

Yes, standard

Yes, standard

No, but adaptable

18,8 kg

495 x 580 x 615 mm

495 x 580 x 265 mm

Downloading

• E-Drawing file: « SemiAutoTL-NV_fixture.EASM » (2.00 Mo)

• Datasheet : « SemiAutoTL-NV_fixture.pdf » (137 Ko)

Technical Specifications

Product group:

Serie:

Sub-serie:

Standard size reference:

Fixture’s type:

Parallel contacting stroke:

Min. temperature:

Max. temperature:

Standard version:

Opening angle:

Max. production capacity:

Test fixture

UPe

HA

2

Pressor

15 mm

+10°C

+60°C

Yes

60°

100,000 pcs/month
